• Use of casing sterilizer:

Type sterilization machine adopts special four layer casing pipe type structure, Italy is my company fusion technology design and manufacturing, specifically for concentrated fruit and vegetable juice, tomato sauce, jam, syrup, high viscosity material sterilization process.High temperature and instant sterilization can be carried out on materials, and rapid sterilization can be carried out in a very short time to ensure that the nutrients of materials are not damaged, not lost, and the color of products is not changed.It is directly used with sterile large bag filling machine.

• Casing sterilizer product introduction:

The casing sterilizer adopts special four-layer casing structure, which is designed and manufactured by our company in combination with Italian technology. It is specially used for sterilization treatment of jam, syrup and other high-viscosity materials.High temperature and instant sterilization can be carried out on materials, and rapid sterilization can be carried out in a very short time to ensure that the nutrients of materials are not damaged, not lost, and the color of products is not changed.

The main body of casing sterilization system is divided into heat recovery section, preheating section, sterilization holding section and cooling section of cold and hot materials.The whole process of sterilization is fully automatic control, the man-machine interface can set the sterilization temperature flexibly.Sterilization temperature and temperature fluctuations during production is less than 0.5 ℃. Equipped with multi-function pressure tank, production when used to buffer material and the material flow, after the production can be used as CIP cleaning tank.This equipment adopts high-end configuration, simple and convenient operation, set sterilization parameters, one-key operation.Automatic sterilization process, no human intervention is required.The sterilizer adopts the direct heat exchange of cold and hot materials to heat up and cool down, which is 30% more energy saving than the same sterilizer in the same industry.The sterilizer comes with CIP cleaning system.

Casing sterilizer has the following advantages compared with other kinds of sterilizer:
1.加热介质与物料温差小，可实现温和加热，换热管采用了套管，镜面抛光，结垢少，增长了杀菌机的工作时间。
2.自动化程度高，从设备的CIP清洗、设备自杀菌到物料杀菌整个过程可实现自动控制、记录。
3.杀菌温度控制精确可靠：影响杀菌温度的系统如蒸汽压力、流量，物料流量等都严格自动控制。
4.物料管内壁采用先进技术抛光，管道焊接采用自动焊，管道设计实现完全自动清洗，设备全过程自杀菌，确保系统无菌性。
5.系统安全性强，系统配件皆选用性能好可靠性高的产品，系统设计高度重视人身，设备安全，蒸汽，热水，物料等都有压力保护措施和报警系统。
6.系统可靠性高，主要部件如物料泵、热水泵、各类阀门，控制系统的电气元件和执行元器件都是世界名牌。
7.自带CIP清洗系统和SIP系统。

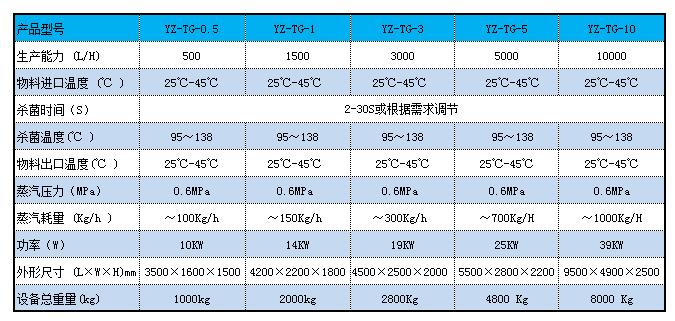

套管杀菌机基本参数：

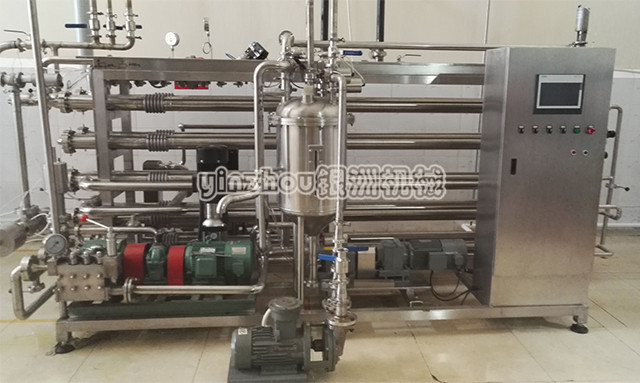

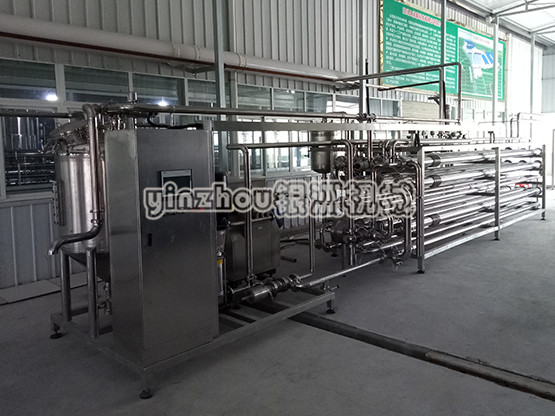

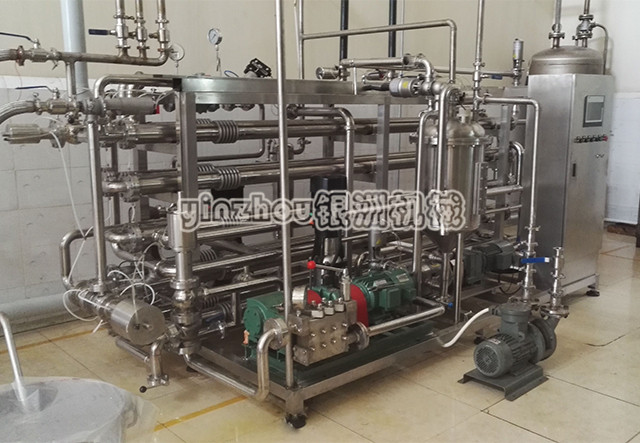

套管杀菌机图片：
